Yokogawa WT5000 Automated Verification Software

Description

⚡ Yokogawa WT5000 Automated Verification Software

Automated performance verification software for the Yokogawa WT5000 Power Analyzer. 🌐 Internet connection required for use.

✅ Includes FREE Trial Runs – Register to get started and evaluate before purchasing credits.
✅ No high-cost license fees – Just 8 PayPerCal credits per test run per asset/serial number.
✅ Customizable – Request modifications to support your unique standards or calibration workflow.

🕒 Average Run-Time:
Approximately 30 minutes per channel (up to 7 channels)
➡️ Total average test time: ~3.5 hours

🧪 Tests Based On:
Yokogawa WT5000 specifications for verifying key electrical parameters.

🔧 Requirements:

• Internet connection

• GPIB cable + NI USB-GPIB adapter

• NI VISA drivers + NI 488.2 drivers – Click to download NI VISA here and NI 488.2 here

• Microsoft Excel

• Windows laptop or desktop

• Yokogawa WT5000

• Minimum four 36″ banana-banana test leads

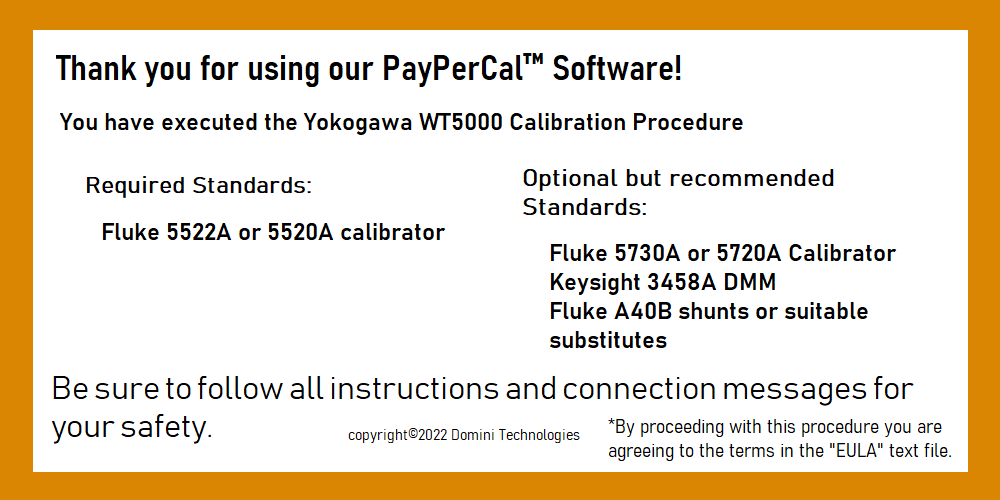

🧪 Minimum Standard Equipment:

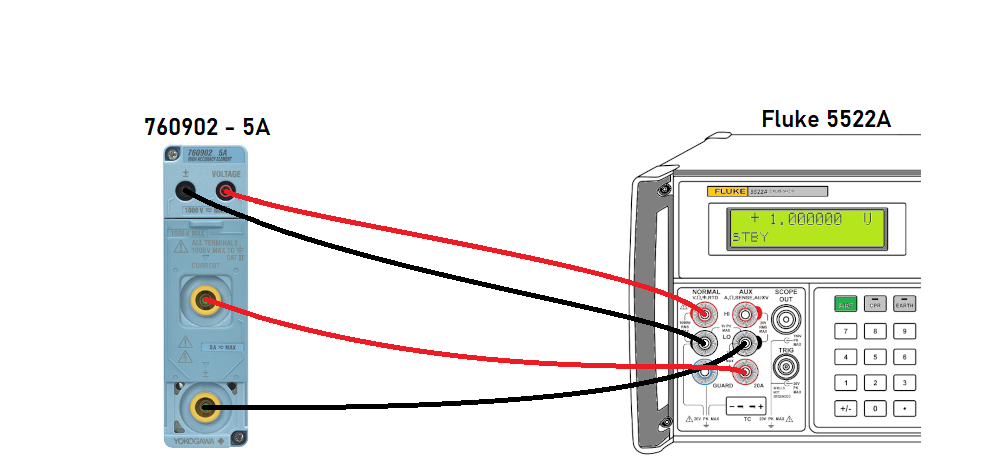

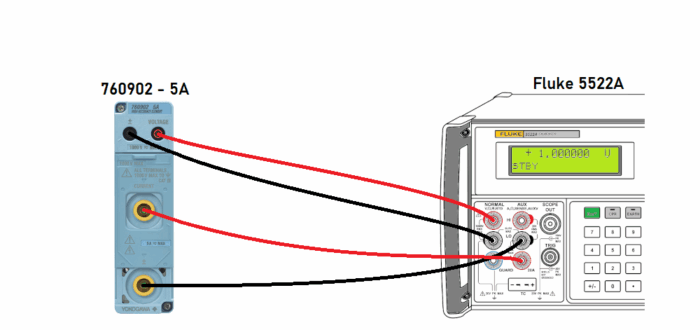

• Fluke 5522A or 5520A multifunction calibrator

✅ Recommended Equipment for most testing accuracy:

• Fluke 5522A or 5520A

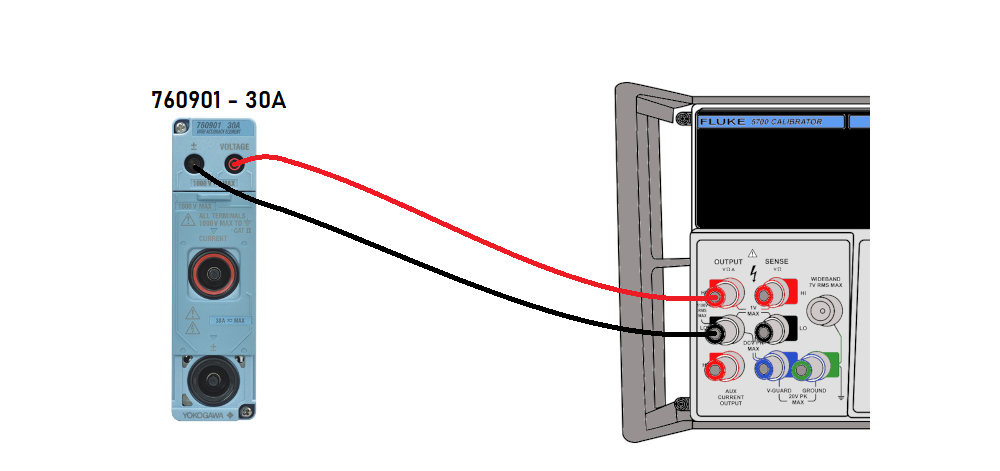

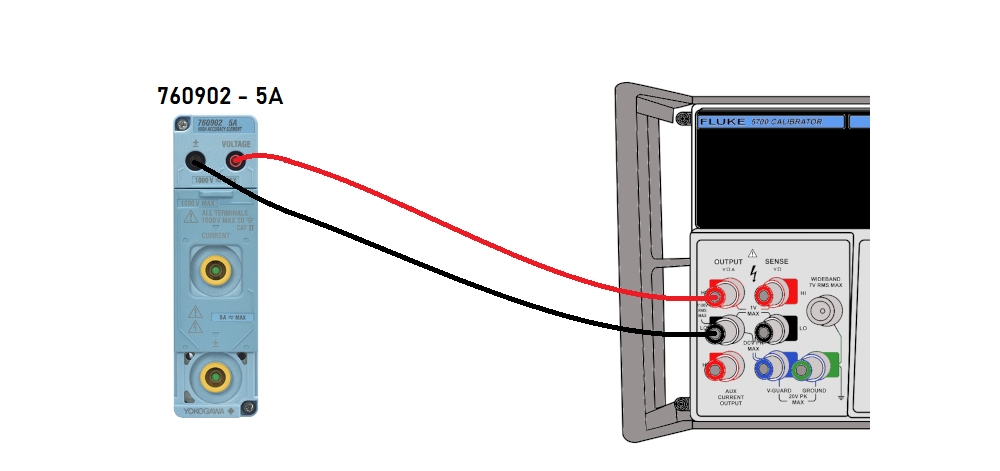

• Fluke 5700A series calibrator

• Keysight 3458A

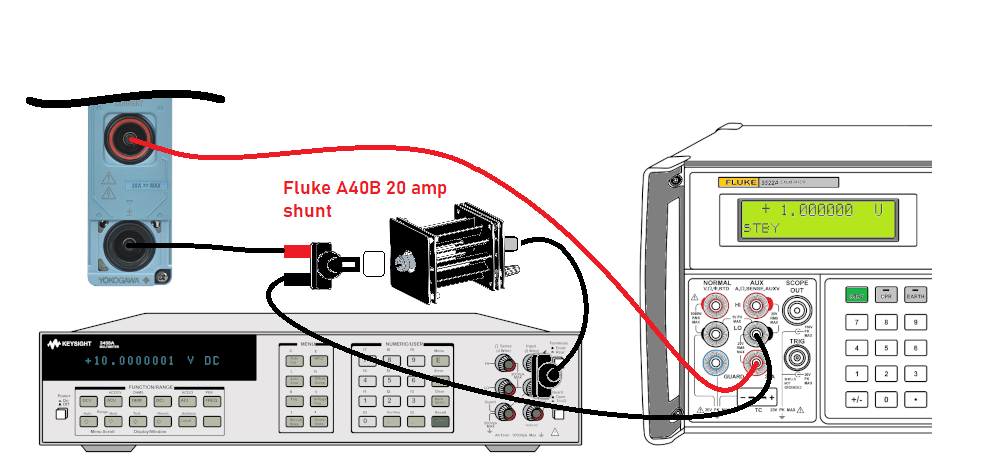

• Fluke A40B shunt set or equivalent

📄See our instructions Connecting Interface Cables to properly connect devices together.

---

* Based on the  specifications from WT5000 Bulletin WT5000-02EN.

For manufacturer description from Yokogawa website, click here.

🔐 Lifetime license option available — includes test and standard customization. Contact us 📧 via email here for a quote.

¹ Domini Technologies makes no representation that this procedure is complete. By purchasing a non-exclusive license, you agree to the Terms of Use. For more information, contact us 📧 via email here.
